16MM RED LED SWITCH — Motorsport Hydration Switch

A ready to wire momentary switch for the RRC DrinkBox. Pre-wired with the correct modification for the Deutsch DT 3-pin connector. Connect red to Pin A, black to Pin B, yellow to Pin C for the 12V LED. Spade connectors included for crimping onto your own wiring. No soldering, no guesswork, just wire and go.

The same switch is available at simracingcraftsmen.com

Key Features

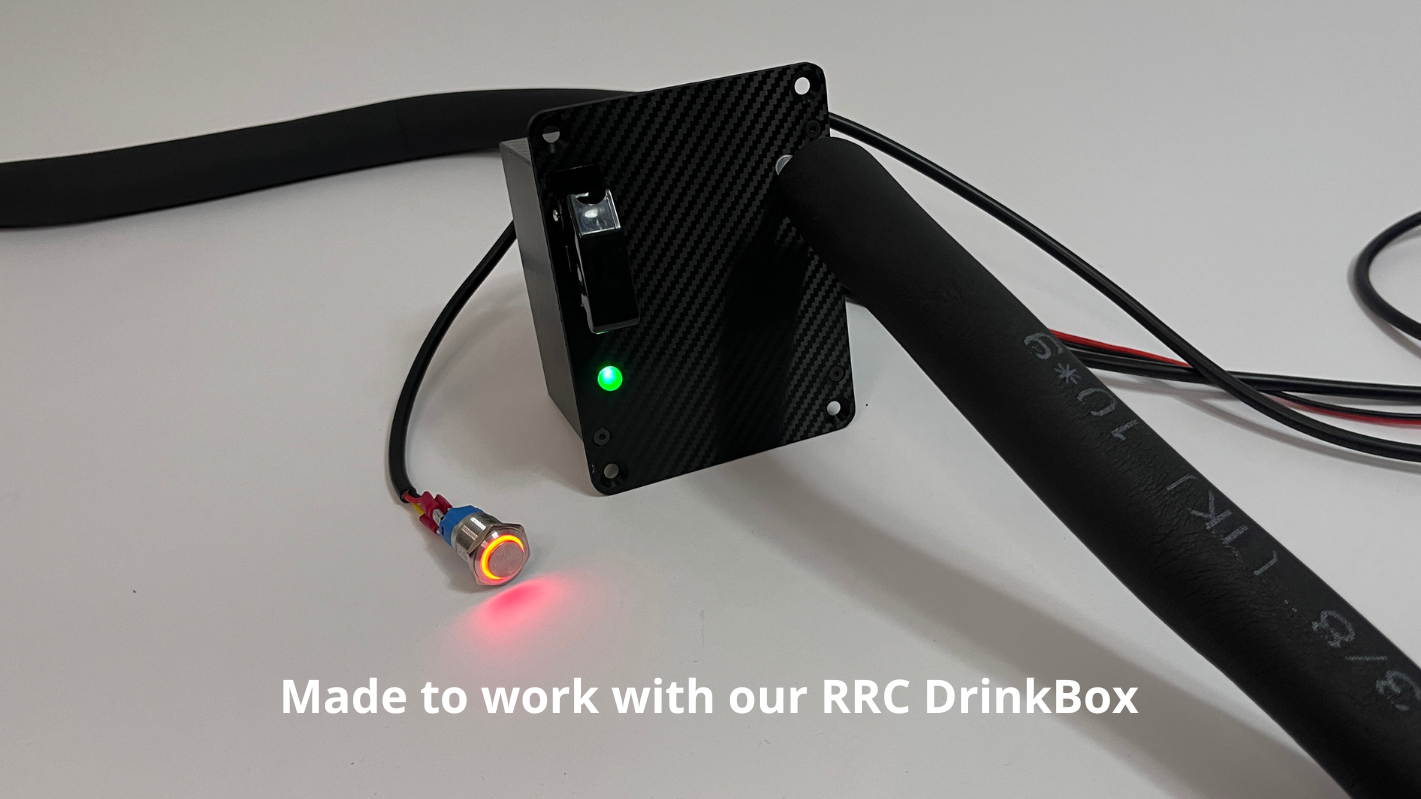

For the RRC DrinkBox

• Red wire — Pin A (switch positive, shared VCC with LED)
• Black wire — Pin B (switch negative, switch GND)
• Yellow wire — Pin C (12V LED negative, LED GND)
• Plugs straight into the Deutsch DT 3-pin connector supplied with your RRC DrinkBox
• Spade connectors included — crimp onto your own wiring without soldering

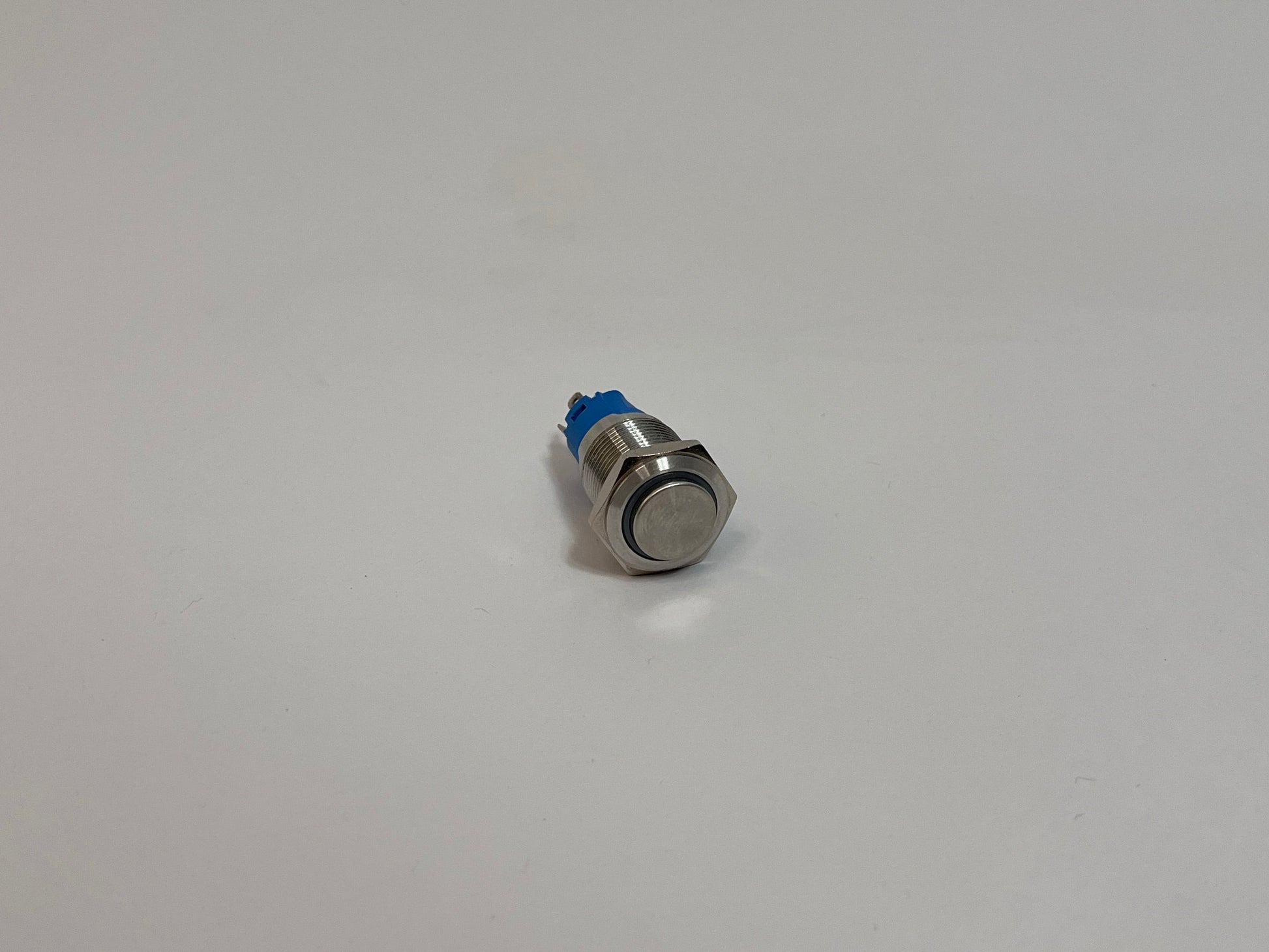

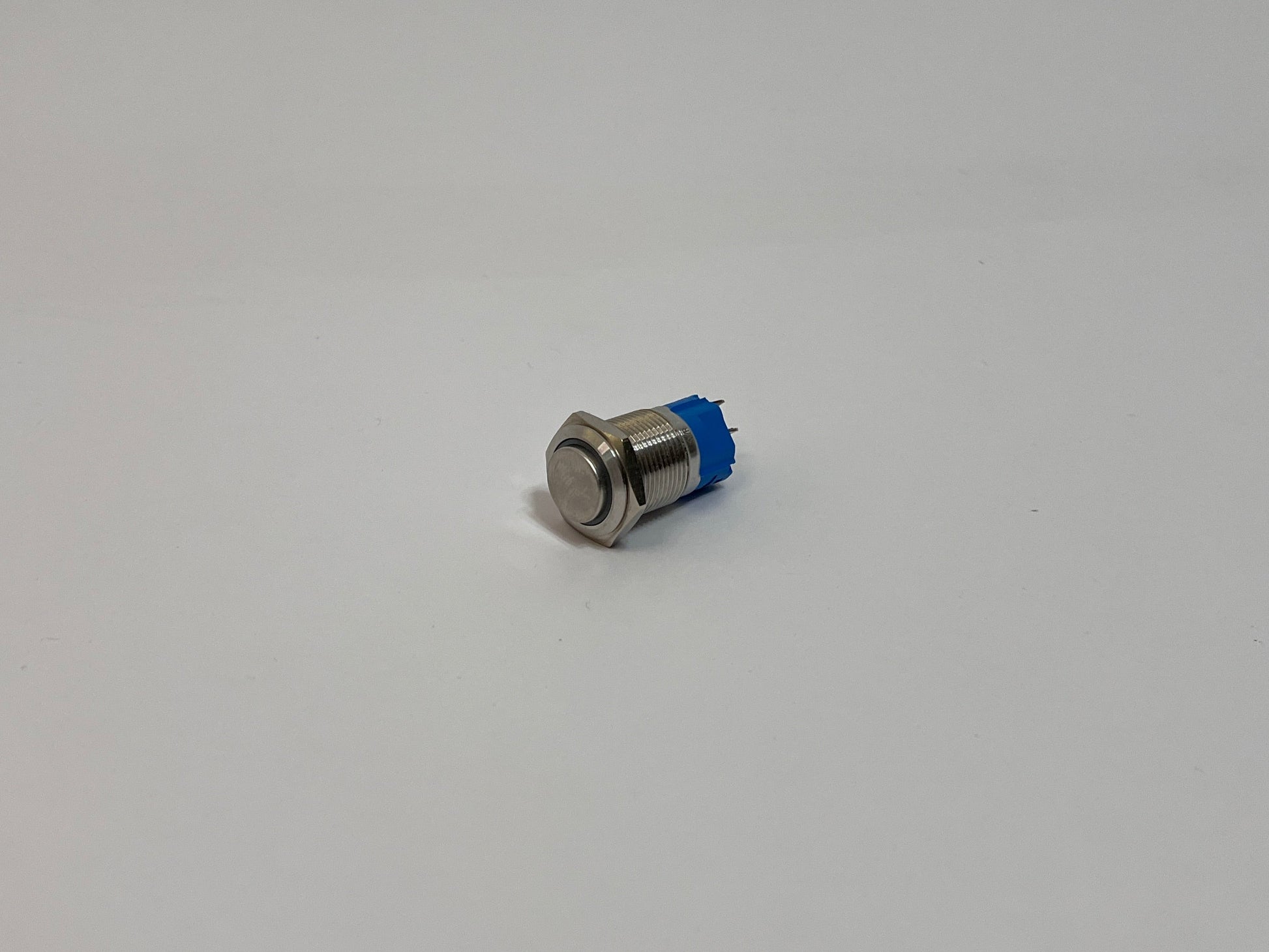

16mm Momentary Switch

• Standard 16mm panel mount diameter
• Momentary action: press to drink, release to stop
• 12V LED ring:  illuminated when the system is armed
• Rated for 12V to 15V: works with your car's electrical system whether idling or running
• Clean and professional finish

Universal Fit

• Fits any standard 16mm panel mount hole
• Mount on your steering wheel, dashboard, roll cage or wherever suits your install
