RRC CONNECTOR OFFSET PLATE — Roll Cage Connector Mount
RRC CONNECTOR OFFSET PLATE — Roll Cage Connector Mount
Couldn't load pickup availability

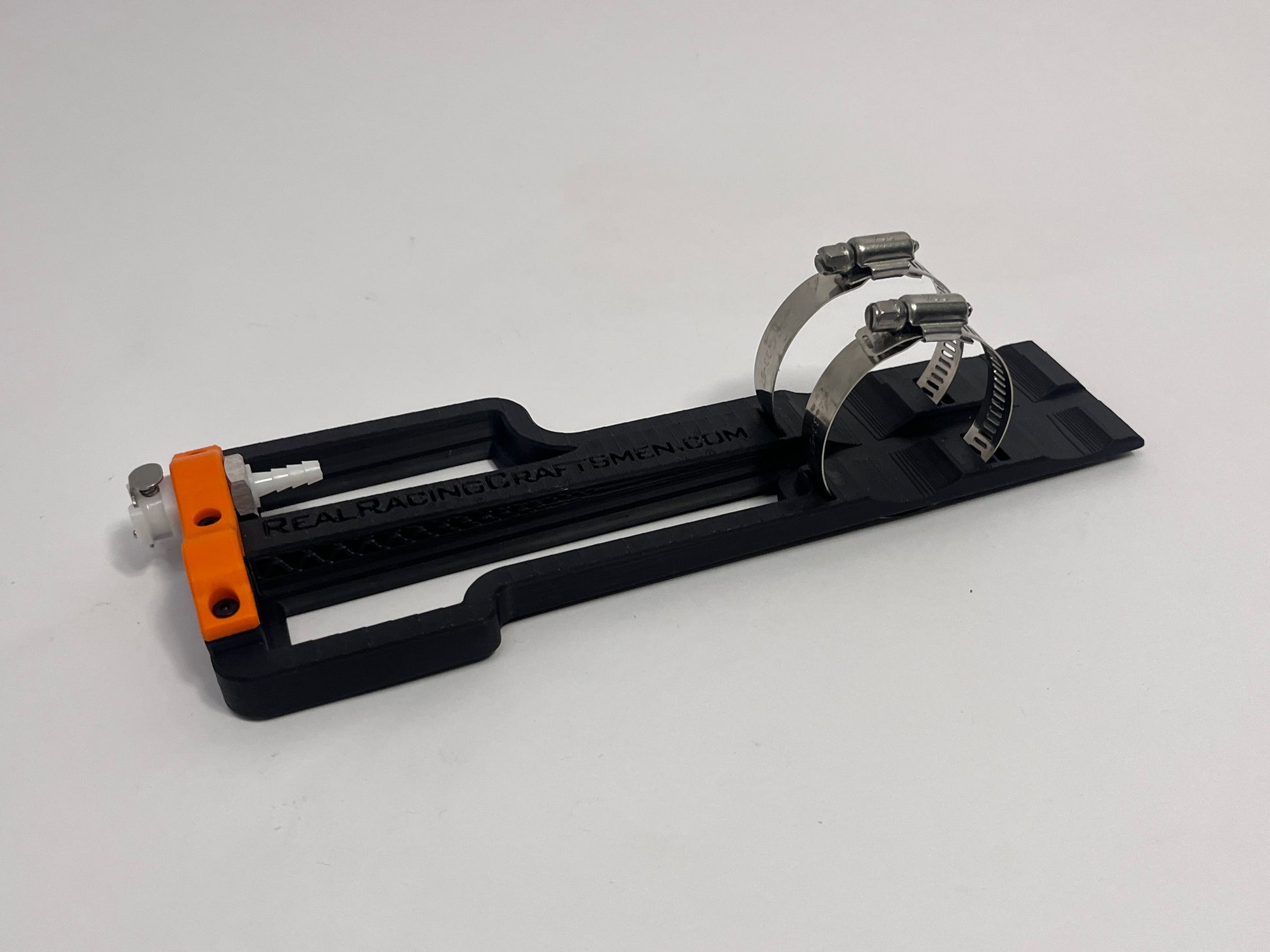

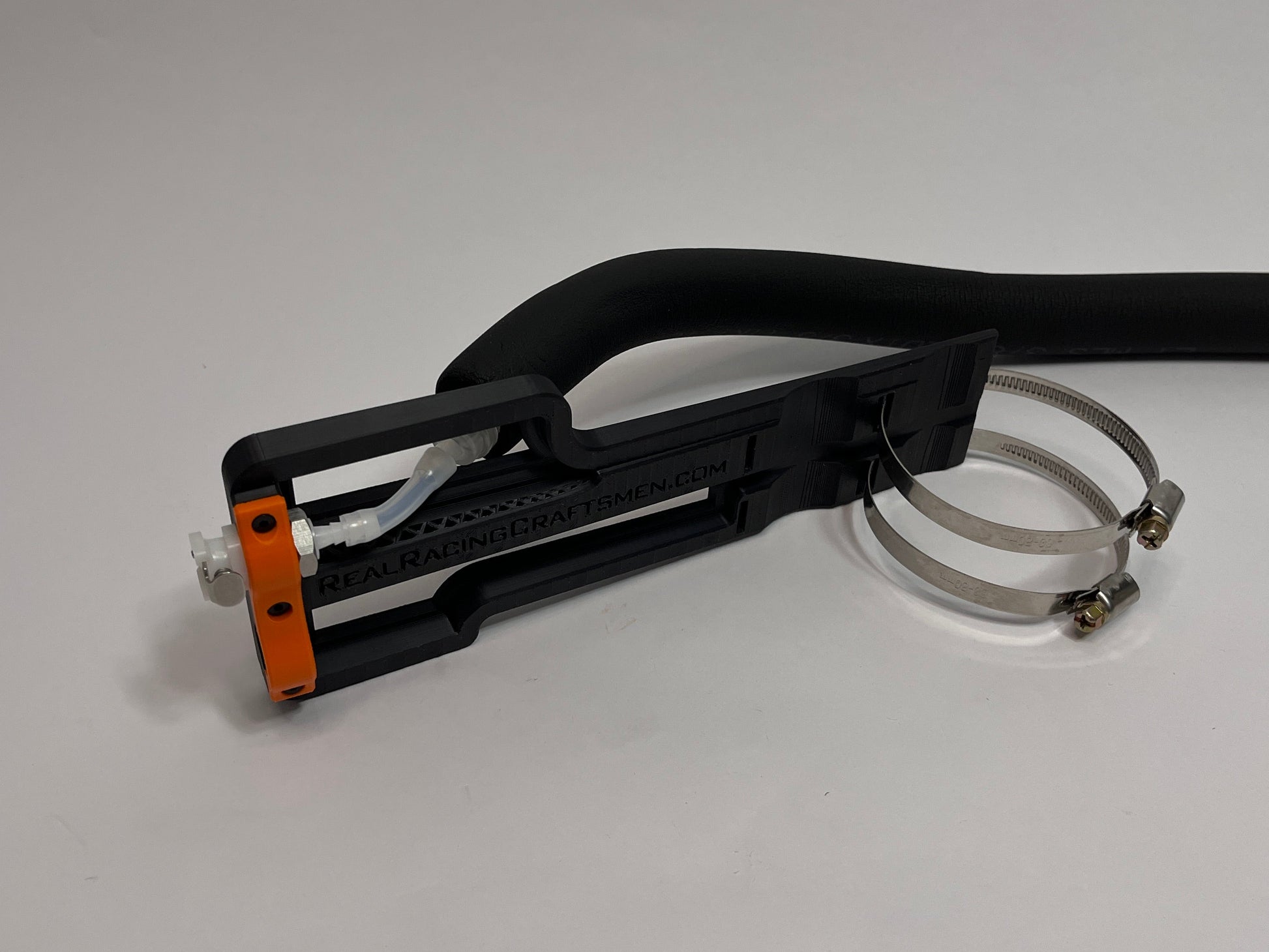

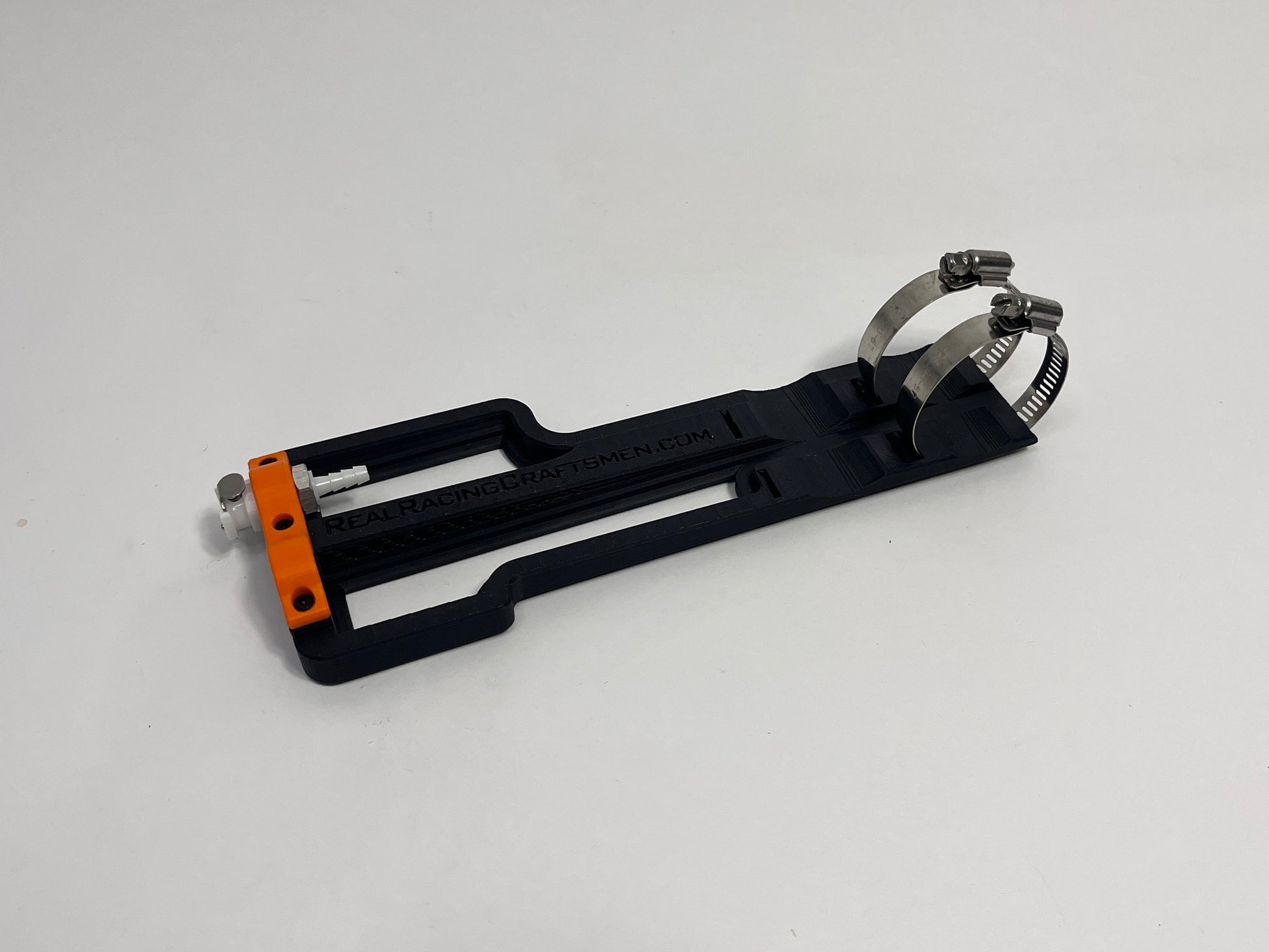

Position your Car Side Connector exactly where your driver needs it. The RRC Connector Offset Plate mounts to your roll cage via two hose clamp slots and offsets the connector closer to the driver, no need to find a different mounting point on the cage, no rerouting tubing.
The bottom half of the connector housing is integrated directly into the plate. Just clip on the included top half, add your included CPC fitting and your own Radio Plug and you're ready to install. No separate Car Side Connector needed.
Key Features
Integrated Connector Housing
- Bottom half of the connector housing built directly into the plate
- Included orange top half clips on, same as the standard Car Side Connector
- Add your included CPC dry break fitting
- Spacers included for most radio plug sizes, compatible with virtually any comms setup
- No separate Car Side Connector needed, complete out of the box
Roll Cage Mounting
- Two hose clamp slots for secure mounting onto roll cage or roll bar tubing
- 3M backed rubber padding, protects your roll cage tubing and adds grip for a secure non-slip mount
- 2x hose clamps included
- 25cm total plate length: positions your connector 18cm or 23cm offset from the roll cage depending on which mounting slot you use
ASA Construction
- Heat resistant, UV stable, impact resistant
- Satin black finish throughout
- Built for permanent racecar installation
Compatible Products
Compatible Products
Driver Hydration Kit — Snaps directly into the connector on the offset plate.
RRC Full System Kit — The complete team hydration system.
RRC Tubing — Same 4x7mm food-safe silicone with pre-installed insulation sleeves. Available in 2m or 4m.
One Way Spring Check Valve — Replacement check valves. Replace periodically for best performance.
CPC Coupling — 3/16" dry break coupling. Add snap points anywhere in your tubing run or panel mount anywhere in the car.
Care and Maintenance
Care and Maintenance
Designed for low-maintenance, hassle-free use.
- After every use: Flush the connector with clean water for 20-30 seconds, then run briefly without liquid to clear excess moisture
- After sugary drinks or isodrink: Always flush thoroughly with clean water immediately after use to prevent buildup
- Regular cleaning: Fill your bottle with clean water and dissolve a cleaning tablet — run the full bottle through the system, then flush thoroughly with clean water and run dry
- Deep clean (as needed): Use warm water with a bit of vinegar through the connector, then rinse thoroughly and run dry
Avoid alcohol-based cleaners — they may reduce the lifespan of the seals and fittings.
Exploring Sim Racing?
Exploring Sim Racing?
Running a sim rig? The SRC Car Side Connector mounts directly to your 4040 profile — no offset plate needed. Find it at simracingcraftsmen.com
What's in the box?
What's in the box?
- 1x RRC Connector Offset Plate (ASA, 25cm) with integrated connector bottom half
- 1x Orange connector top half
- Female or Male 3/16" CPC fitting
- Spacers for most radio plug sizes
- 2x Hose clamps
- 3M backed rubber padding
- (With check valve option) 1x One Way Spring Check Valve
