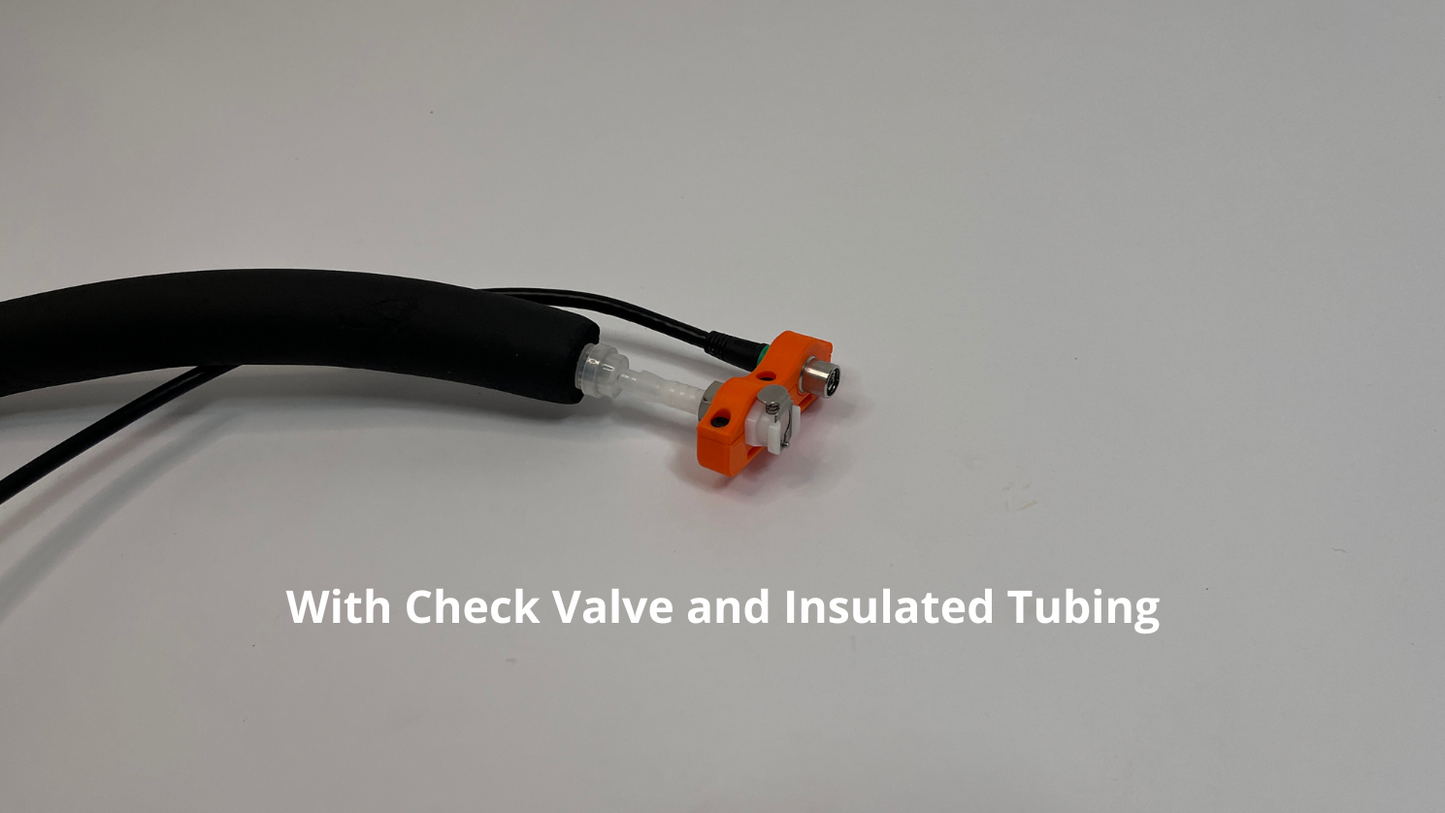

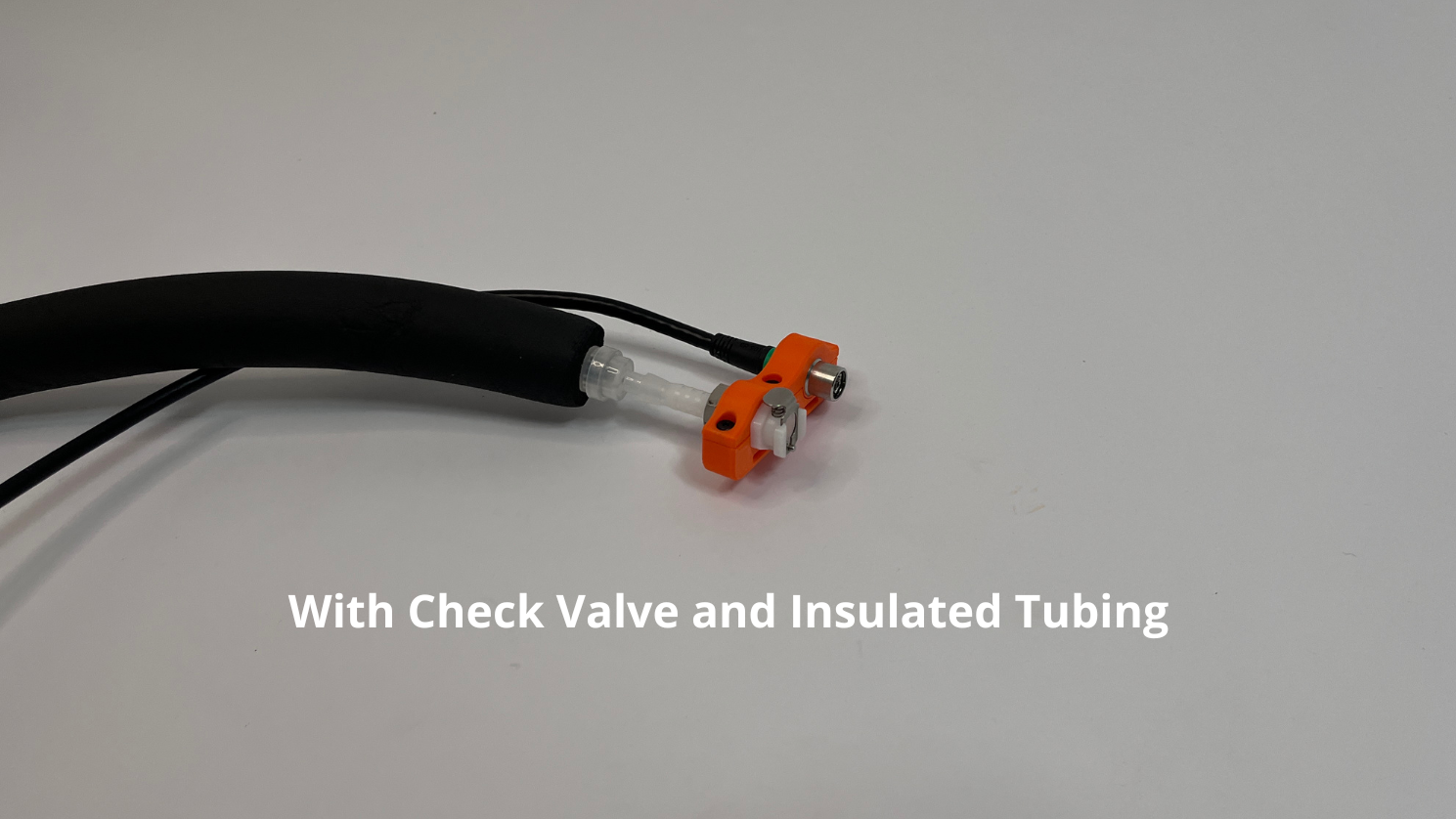

  • orange car side motorsport hydration connector holder with radio plug and insulated tubing connected to it on light gray background

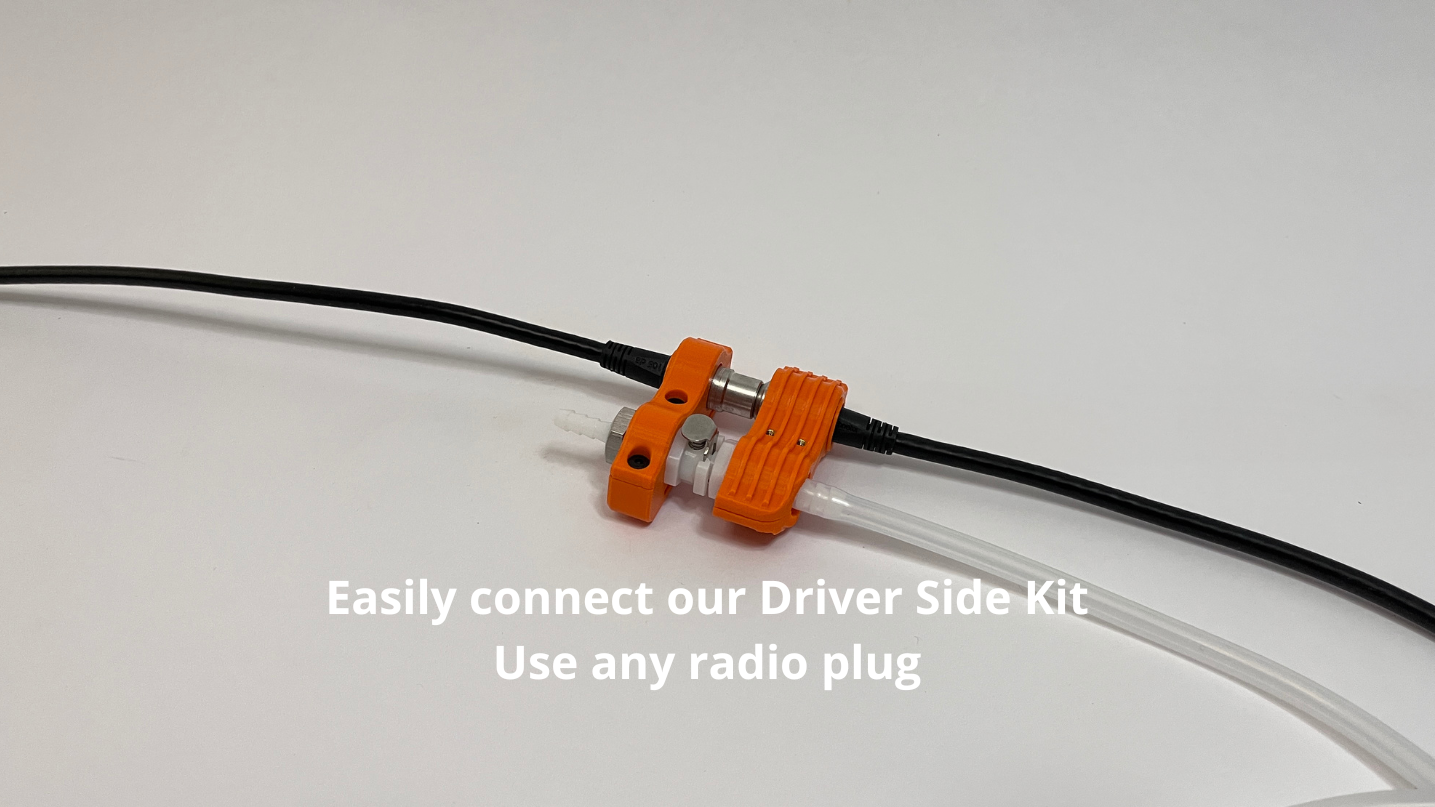

  • orange car side and driver side motorsport hydration connector holder with radio plug and tubing connected to it on light gray background

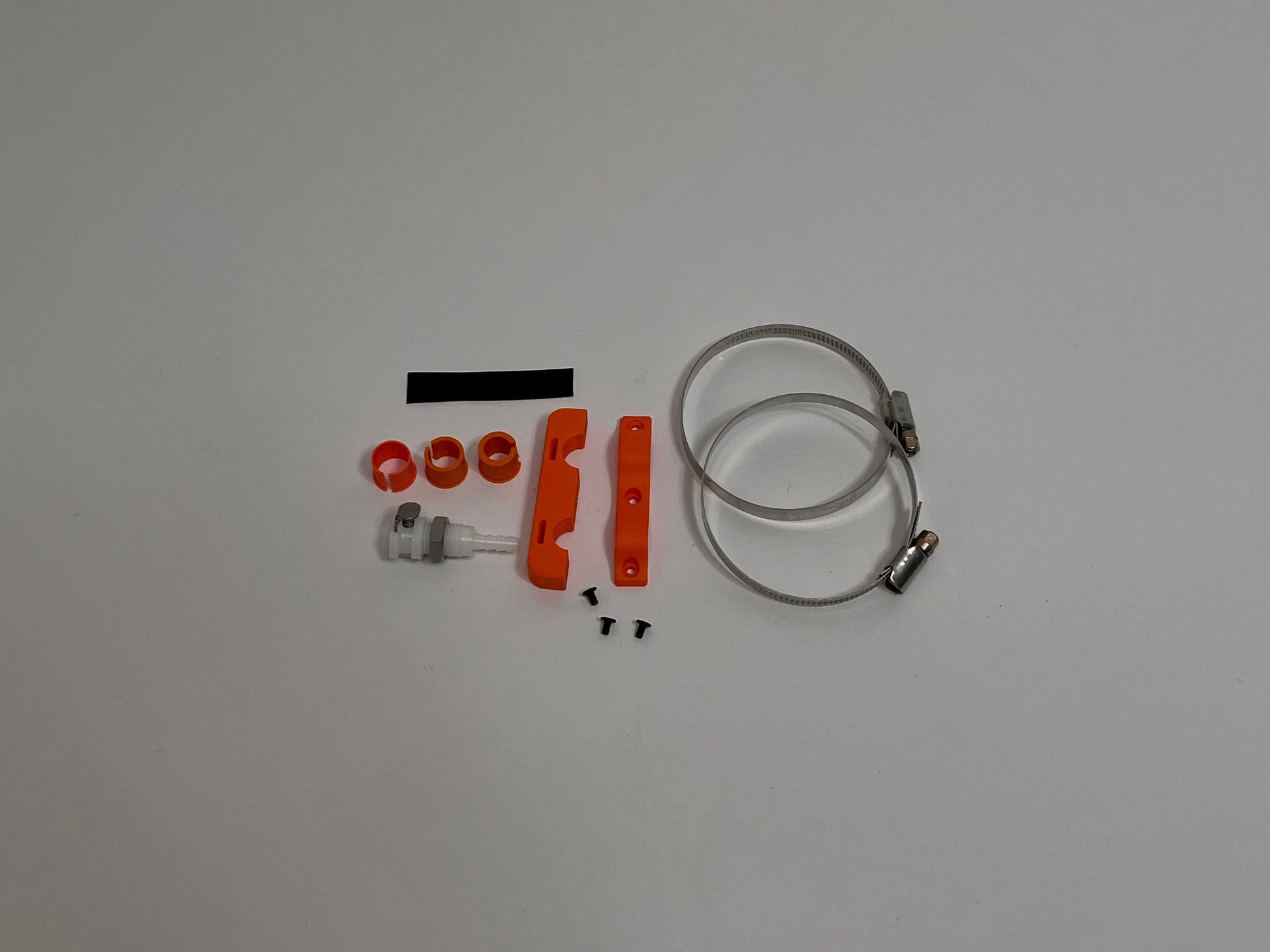

  • all motorsport drink unit car side connector holder parts included in the kit showing mounting hardware, lower and upper of the connector holder, dry break water fitting and roll cage mounts on a light gray background
1 4

RealRacingCraftsmen

RRC CAR SIDE CONNECTOR — Motorsport Hydration Car Side Connector

RRC CAR SIDE CONNECTOR — Motorsport Hydration Car Side Connector

€79,99 EUR
€79,99 EUR
Sale Sold out
Taxes included.

The fixed half of the system. The RRC Car Side Connector mounts permanently on your roll cage or roll bar. Your tubing connects once and stays. Every time your driver gets in, their Driver Hydration Kit snaps straight in. Every time they get out, press the button on the female fitting and it springs apart cleanly. No fumbling, no drips.

Designed to pair with the Driver Hydration Kit.

Compatible with most radio plugs via the included spacers, no drilling, no modifications, works with virtually any comms setup.

All RRC and SRC products use the same 4x7mm food-safe silicone tubing — everything in the system works with this tubing size.

Professional endurance racing connector technology at a fraction of the cost of traditional motorsport suppliers, without compromising on performance.

The same connector system is available for sim racing at simracingcraftsmen.com — 4040 profile mounting for your rig.

Key Features

Roll Cage & Roll Bar Mounting

  • Integrated hose clamp slits for secure mounting onto roll cage or roll bar tubing
  • Hose clamps included
  • Mounts in any position to suit your car layout
  • Built to stay in the car permanently

Car Side Connector Housing

  • ASA construction: heat resistant, UV stable, impact resistant
  • Two bolt-together halves wedge the CPC fitting and radio plug securely in place
  • Spacers included: compatible with most radio plugs, no drilling or modifications needed
  • Standard Female 3/16" CPC fitting included

3/16" CPC Dry Break Fitting

  • Press the button on the female fitting to disconnect: springs apart cleanly every time
  • Watertight on connect and disconnect: no drips even with a full line
  • Snaps directly into the Driver Hydration Kit male CPC fitting
  • Same 3/16" standard across the entire RRC and SRC system

Optional Check Valve

  • One way check valve: no backflow, no drips when disconnected
  • Keeps the system primed and ready
  • Recommended if connecting to your own drink system
  • Replaceable

Compatible Products

RRC DrinkBox — The heart of the system. Connect your Car Side Connector tubing straight to the DrinkBox outlet — same 4x7mm spec, all fits in one go.

Driver Hydration Kit — The other half of the system. Male CPC as standard, pairs directly with the Car Side Connector. Available in 1, 2 or 3 set options.

RRC Driver + Car Side Bundle — Both sides together at a discount. Everything you need for the full connector setup.

RRC Tubing — Same 4x7mm food-safe silicone tubing with pre-installed insulation sleeves. Available in 2.5m or 5m.

Duckbill Check Valve — Replacement check valves. Replace periodically for best performance.

CPC Coupling — 3/16" dry break coupling. Add snap points anywhere in your tubing run or panel mount anywhere in the car.

Care and Maintenance

Designed for low-maintenance, hassle-free use.

  • After every use: Flush the connector with clean water for 20-30 seconds, then run briefly without liquid to clear excess moisture
  • After sugary drinks or isodrink: Always flush thoroughly with clean water immediately after use to prevent buildup
  • Regular cleaning: Fill your bottle with clean water and dissolve a cleaning tablet — run the full bottle through the system, then flush thoroughly with clean water and run dry
  • Deep clean (as needed): Use warm water with a bit of vinegar through the connector, then rinse thoroughly and run dry

Avoid alcohol-based cleaners — they may reduce the lifespan of the seals and fittings.

Exploring Sim Racing?

The SRC Car Side Connector brings the same connector technology to your sim rig — 4040 profile mounting, same 3/16" CPC standard. Find it at simracingcraftsmen.com

What's in the box?

  • 1x RRC Car Side Connector Housing with Female (or male) 3/16" CPC fitting
  • Spacers for most radio plug sizes
  • Hose clamp mounting hardware
  • (With check valve option) 1x Duckbill Check Valve
