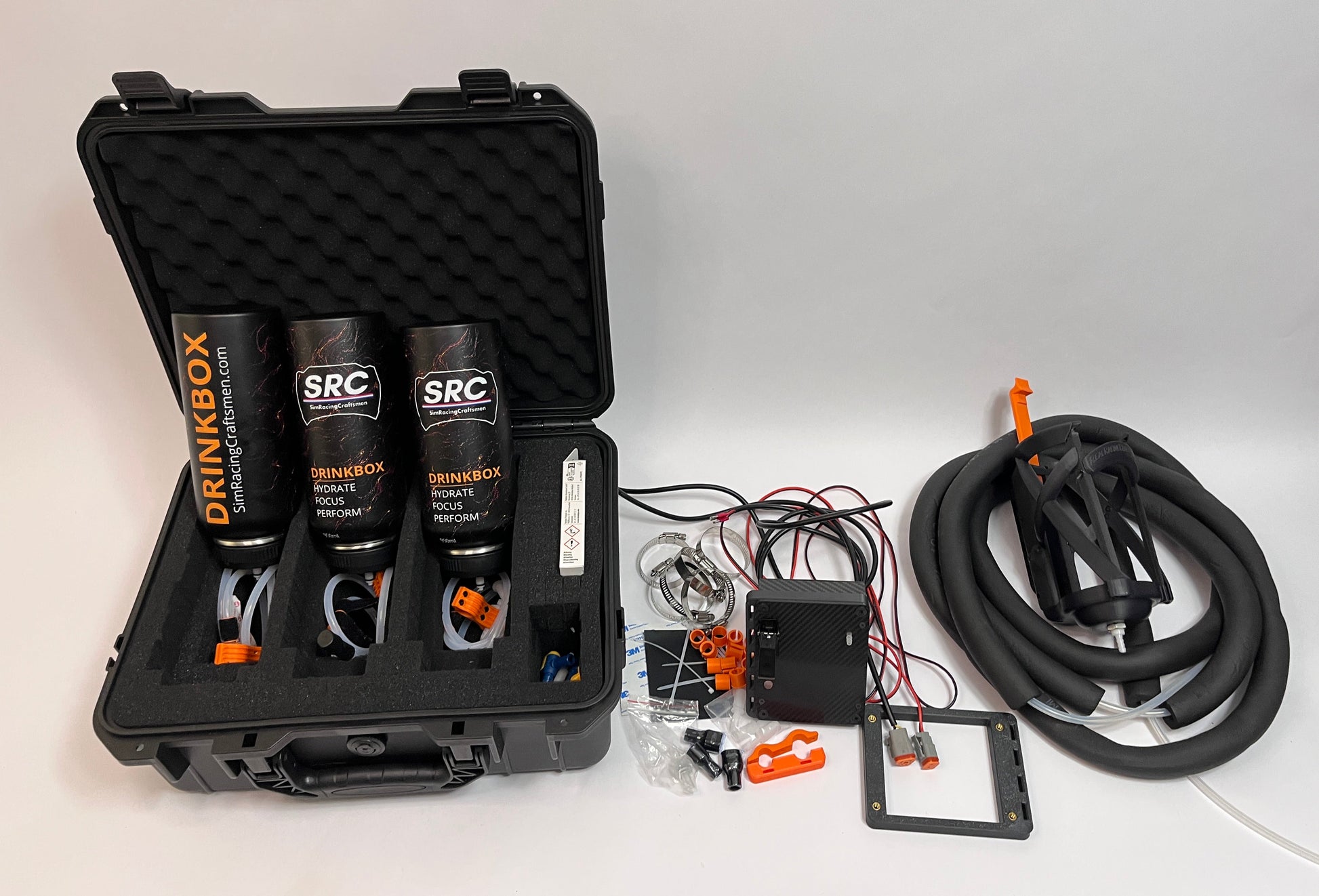

• Full Motorsport hydration kit for drinking during endurance racing with quick driver changes showing everything included in the kit, showing a hard case opened up with foam in it with 3 quick change insulated bottles in the case, 3 driver side kits, cleaning tabs and extra accesories. on the side is the motorsport hydration pump unit, tubing with insulation, bottle holder, cables, connectors, mounting hardware and roll cage mounts on a white background
  • A close-up shot of an SRC Drinkbox hydration canister mounted in a black holder inside a race car, with the brand logo and 'Hydrate Focus Perform' text clearly visible.
  • close up of motorsport hydration bottle holder mounted on a race car roll cage.

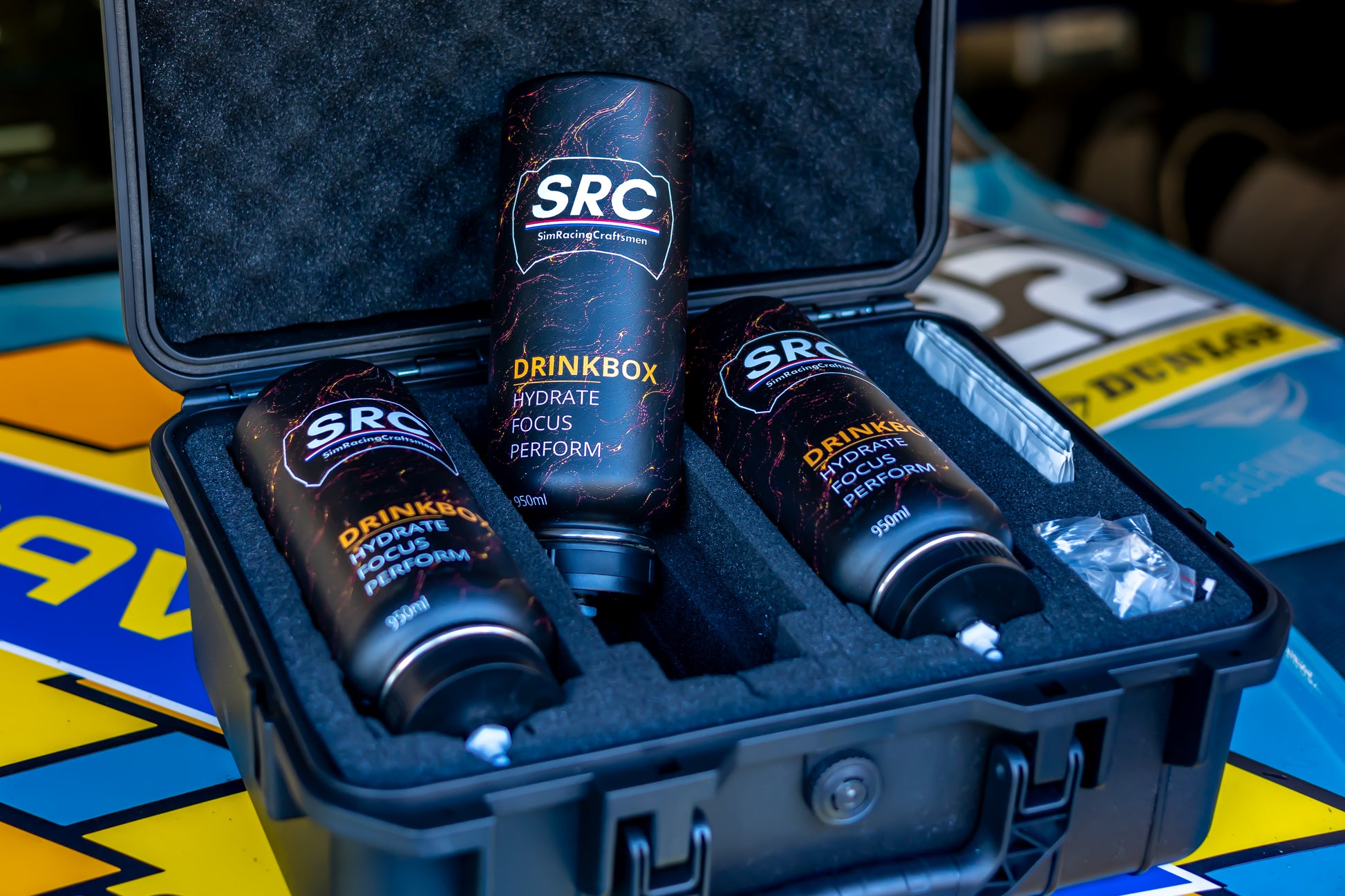

  • Three black SRC Drinkbox motorsport quick change drink bottles arranged inside an open black hard case with foam lining, photographed close-up on a branded blue and yellow surface.
  • A black automotive racing hydration drink module with a green indicator light is mounted on a roll bar inside a racing car cabin. White text at the bottom reads 'Showing Prototype front plate, current units shipping with Carbon Look'.

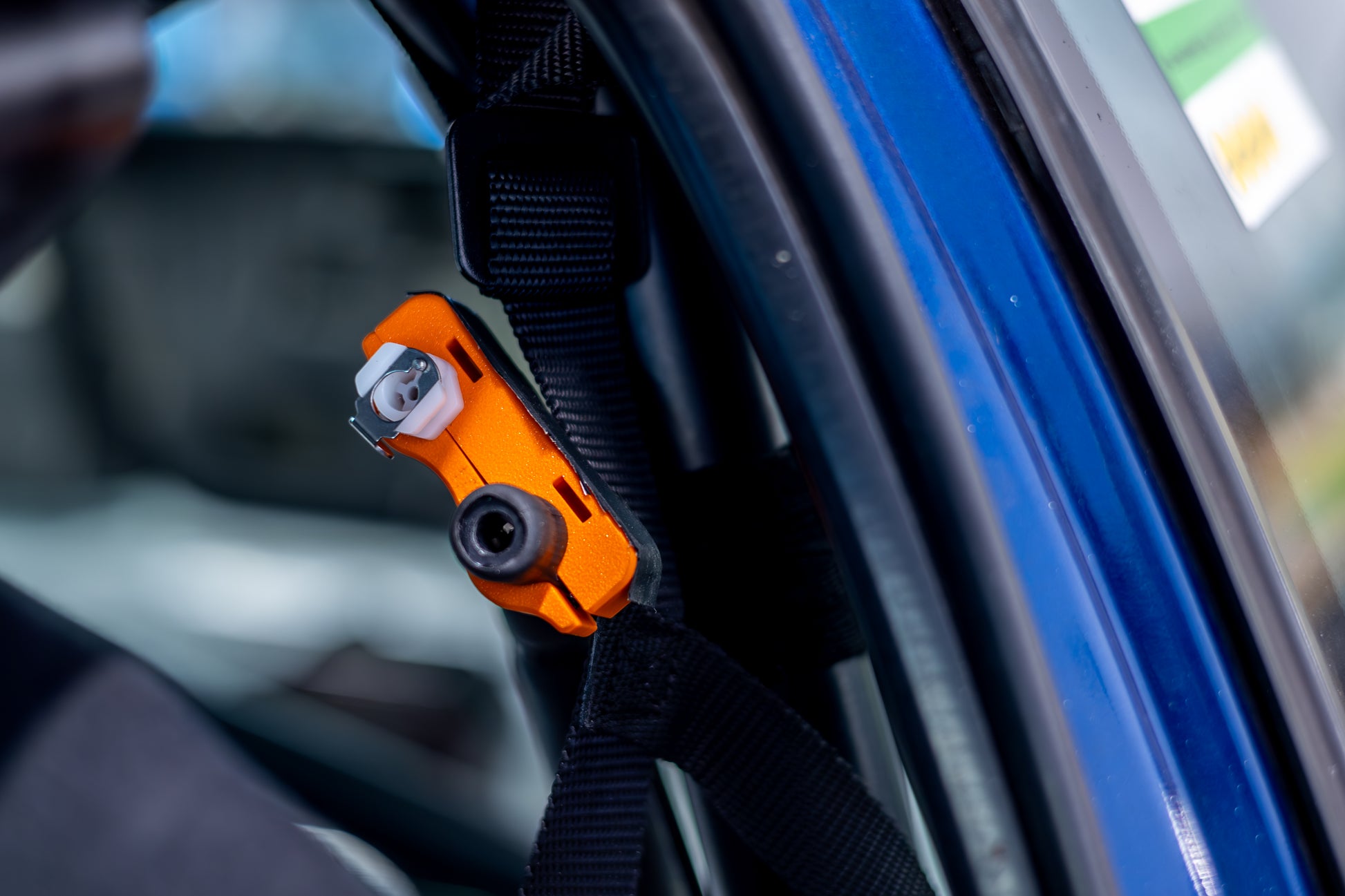

  • orange connector with radio plug and dry break water fitting for motorsport drink unit quick driver changes

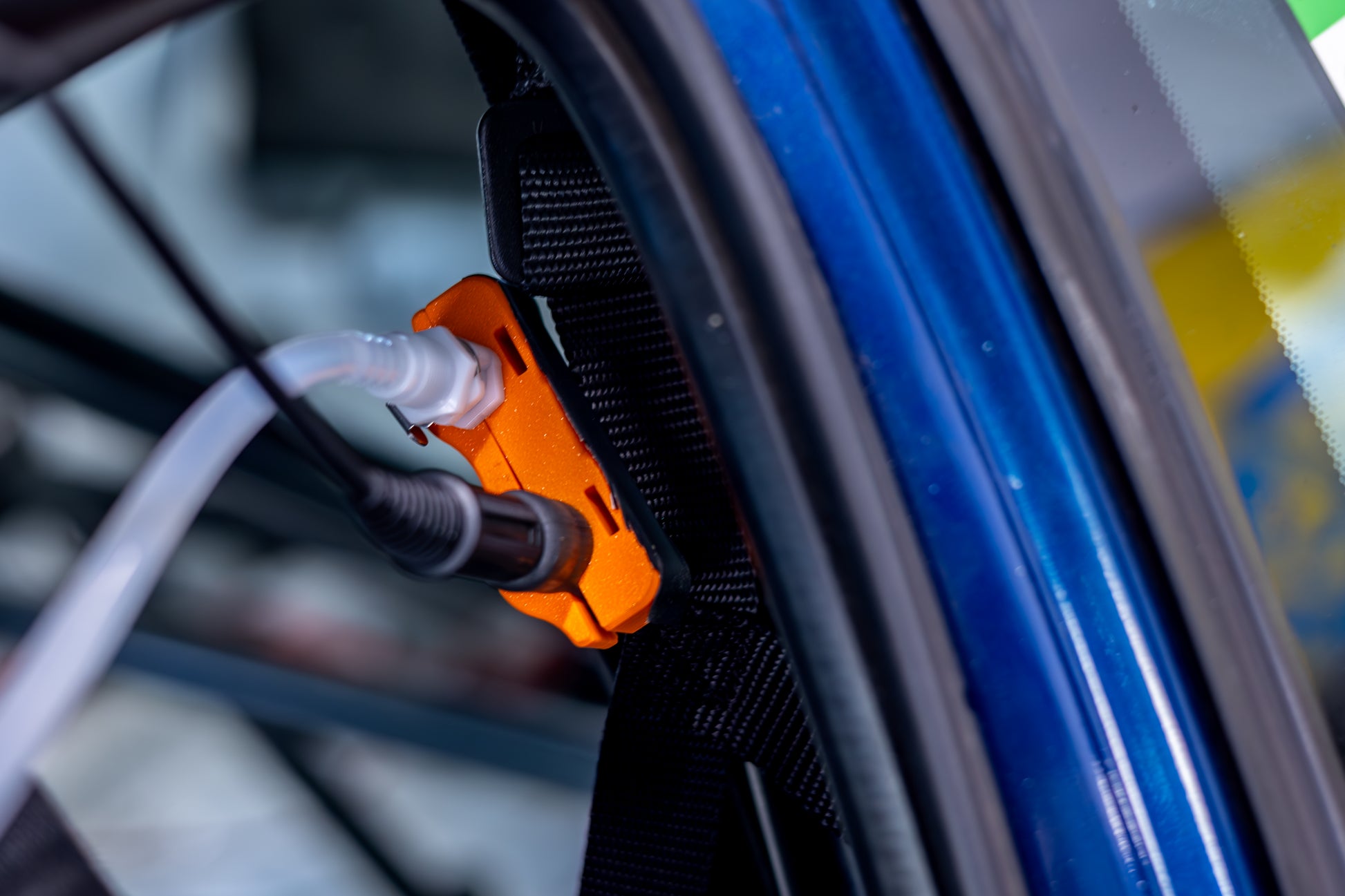

  • Close-up of an orange and black tire hydration connector connected to a translucent hose inside a blue race car
  • A white Bell racing helmet with a reflective visor resting on the hood of a brightly colored race car at night. with motorsport hydration tubing hanging from the helmet

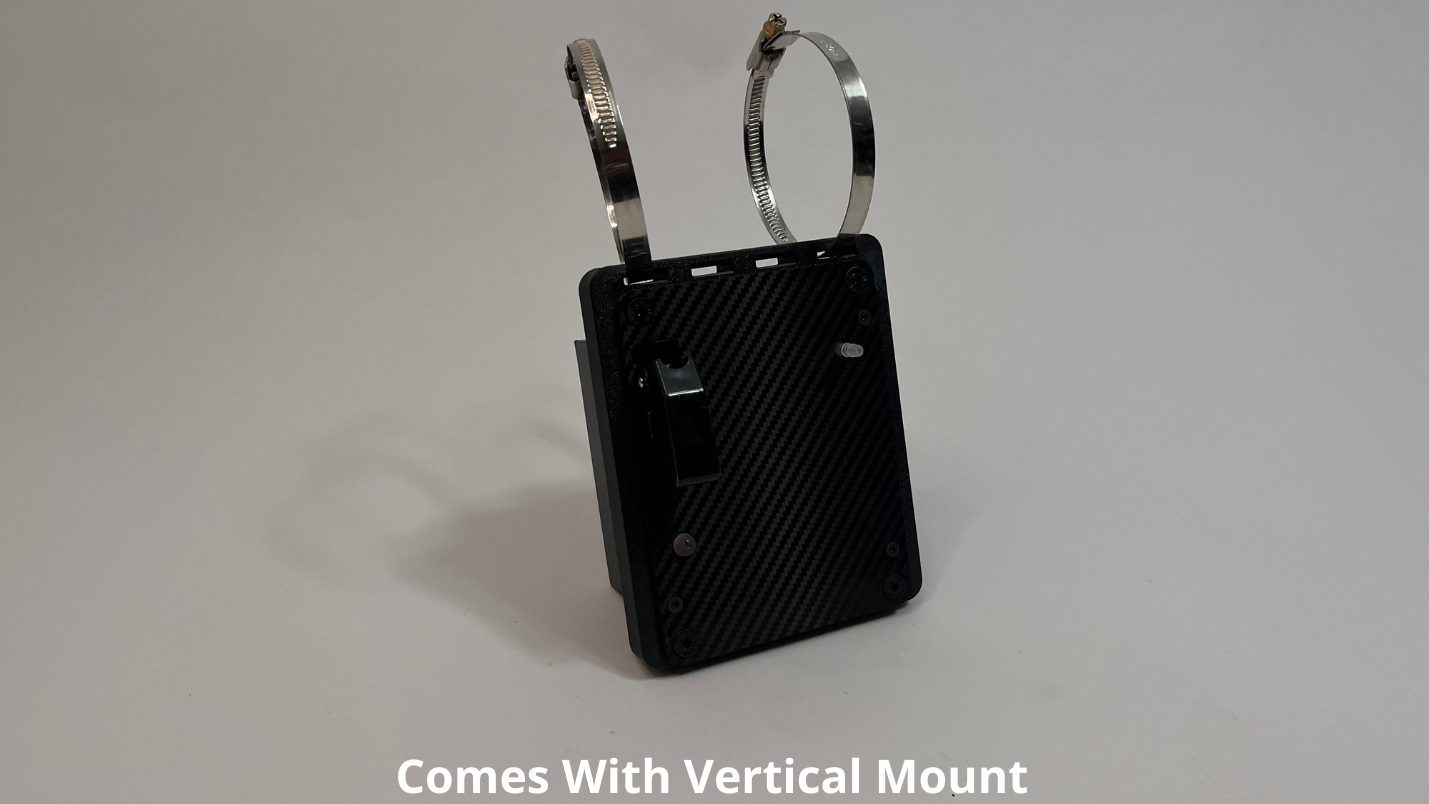

  • front side of motosport drink pump unit showing a black carbon fiber unit with 2 Deutsch connectors on the rear with 2 roll cage mounts on the top to mount vertically on a light gray background
  • front side of motosport drink pump unit laying on its side showing a black carbon fiber unit with 2 Deutsch connectors on the rear with 2 roll cage mounts on the top to mount horizontally on a light gray background

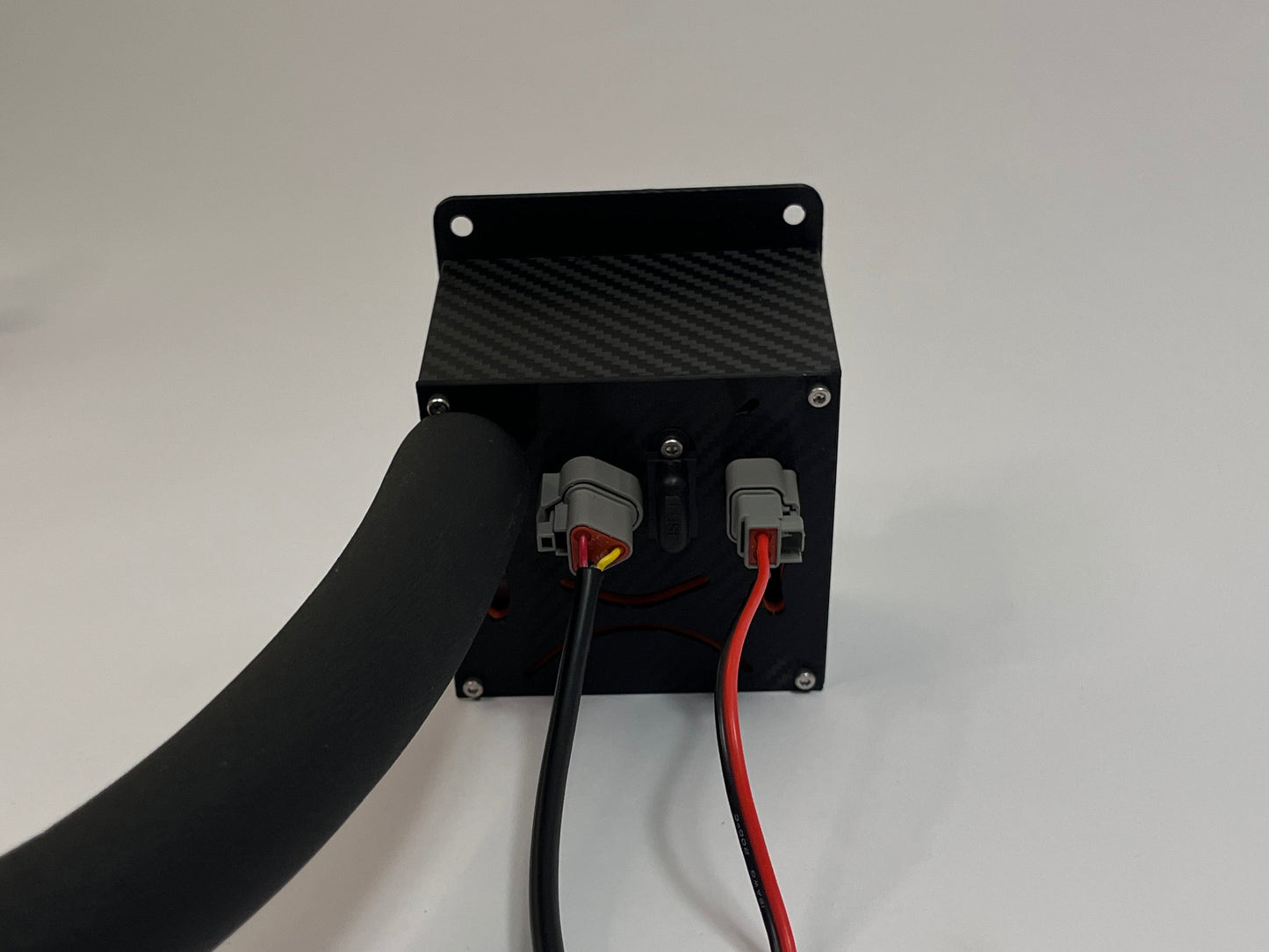

  • rear of racing drink unit showing a black carbon fiber unit with 2 Deutsch connectors on the rear with a black insulated tube on a white background
1 12

RealRacingCraftsmen

RRC FULL SYSTEM KIT — Complete Motorsport Hydration System

RRC FULL SYSTEM KIT — Complete Motorsport Hydration System

€999,99 EUR
€999,99 EUR
Sale Sold out
Taxes included.

The complete RRC hydration system for your racecar. Everything that goes into the car and everything your team takes to the circuit, in one kit.

Handles water, isodrink, sports drinks and fizzy beverages without clogging. The peristaltic pump design means liquid only contacts the tubing, never the pump internals.

Hard wire the DrinkBox to any momentary switch of your choice via the Deutsch DT 3-pin connector, or add our 16mm red LED switch. Professional endurance racing technology at a fraction of the cost of traditional motorsport suppliers.

Key Features

Complete Team Setup

  • Everything needed to run a professional hydration system
  • 3x Driver Hydration Kits included, ready for full endurance team driver rotations
  • Flight case packed and ready for race weekends
  • Designed for sprint racing, endurance racing and everything in between

Motorsport-Grade Throughout

  • ASA construction across all printed components: heat resistant, UV stable, impact resistant
  • Real carbon fiber sides on the RRC DrinkBox
  • Deutsch motorsport connectors: industry standard, used in racecars worldwide
  • 3/16" CPC dry break fittings, same standard across the entire system
  • One way spring check valve: no backflow

Peristaltic Pump System

  • Liquid only contacts the tubing, never the pump internals
  • Handles water, isodrink, sports drinks and fizzy beverages without clogging
  • Food-safe throughout
  • Consistent and precise flow control session after session

Safety Cap Toggle Switch

  • Cap closed: system armed and ready
  • Cap open: system off
  • The same switch style used in real GT racecars
  • Built-in green LED indicator confirms the system is armed at a glance
  • Hard wire any momentary switch via the Deutsch DT 3-pin connector, or add our 16mm red LED switch.

Professional Flight Case

  • Black hard case with pick and pluck foam — custom fit to contents
  • Space for 3x Driver Hydration Kits, 3x Race Bottles, spares and consumables

Compatible Products

RRC Tubing — Extra or replacement tubing. Same 4x7mm food-safe silicone with pre-installed insulation sleeves. Available in 2m or 4m.

Race Bottle — Extra bottles for your team. 950ml insulated, CPC Quick-Connect Cap included.

Bite Valve — Replacement bite valves. Replace regularly for best hygiene.

One Way Spring Check Valve — Replacement check valves for the Car Side Connector.

CPC Coupling — 3/16" dry break coupling. Add snap points anywhere in your tubing run or panel mount anywhere in the car.

16mm Red LED Switch — Pre-wired and ready to go — wires straight into the Deutsch DT 3-pin connector.

Coiled Cable — Keep your switch wiring neat and tidy. Note: not recommended if your steering column is uncovered.

Cleaning Tablets — Cleaning tablets to keep your system running clean. Cleaning tablets also available as a subscription.

Care and Maintenance

Designed for low-maintenance, hassle-free use.

  • After every use: Flush the system with clean water for 20-30 seconds, then run briefly without liquid to clear excess moisture
  • After sugary drinks or isodrink: Always flush thoroughly with clean water immediately after use to prevent buildup
  • Regular cleaning: Fill your bottle with clean water and dissolve a cleaning tablet — run the full bottle through the system, then flush thoroughly with clean water and run dry
  • Deep clean (as needed): Use warm water with a bit of vinegar through the connector, then rinse thoroughly and run dry
  • Fuse: If the pump stops working, check the 3A purple blade fuse in the external enclosure between the Deutsch connectors — replace with any standard 3A purple blade automotive fuse

Avoid alcohol-based cleaners — they may reduce the lifespan of the seals and fittings.

Exploring Sim Racing?

The SRC-100 DrinkBox brings the same motorsport-grade hydration technology to your sim rig — PC software control, ModuRig compatible, same brushless pump. Find the full SRC range at simracingcraftsmen.com

What's in the box?

To be installed in the car:

  • 1x RRC DrinkBox with horizontal and vertical mounting hardware
  • 1x RRC Endurance Bottle Dock
  • 1x RRC Car Side Connector with one way spring check valve
  • 6x Hose clamps
  • 4m food-safe silicone tubing with 2x 1.8m pre-installed insulation sleeves
  • Deutsch DT 2-pin power connector with 2.5m wiring
  • Deutsch DT 3-pin switch connector with 2.5m wiring
  • 1x Spare 3A purple blade fuse
  • other misc mounting hardware

Flight Case: Black hard case with pick and pluck foam

  • 3x Race Bottles with CPC Quick-Connect Cap
  • 3x Driver Hydration Kits
  • 3x Spare Bite Valves
  • 1x Spare One Way Spring Check Valve
  • Zip ties
  • 12x Cleaning Tablets
View full details
